PAiA Custom Glide Module

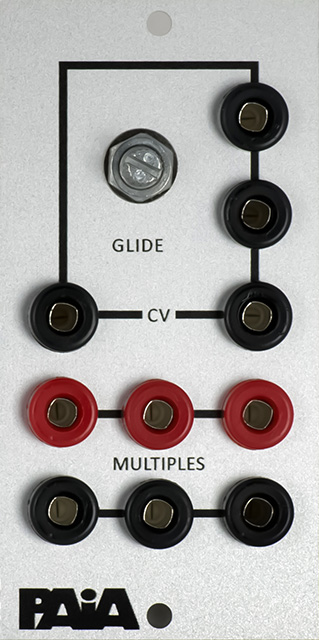

I built a CV Glide module and added some banana multiples to fill out the panel space.  I made the panel using 1.5mm anodized aluminum with the print graphics feature from FrontPanelExpress.

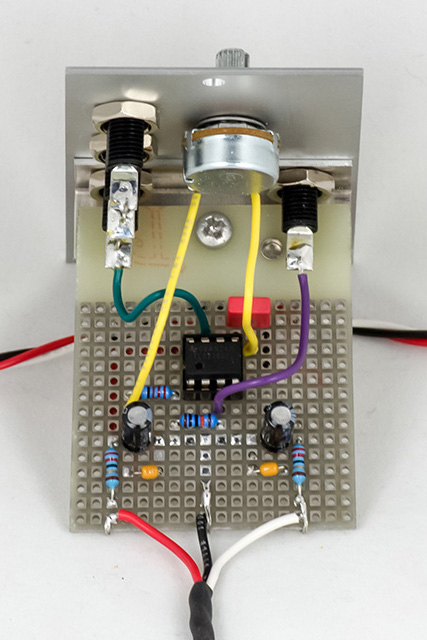

I hand wired a simple glide circuit. and multiples.

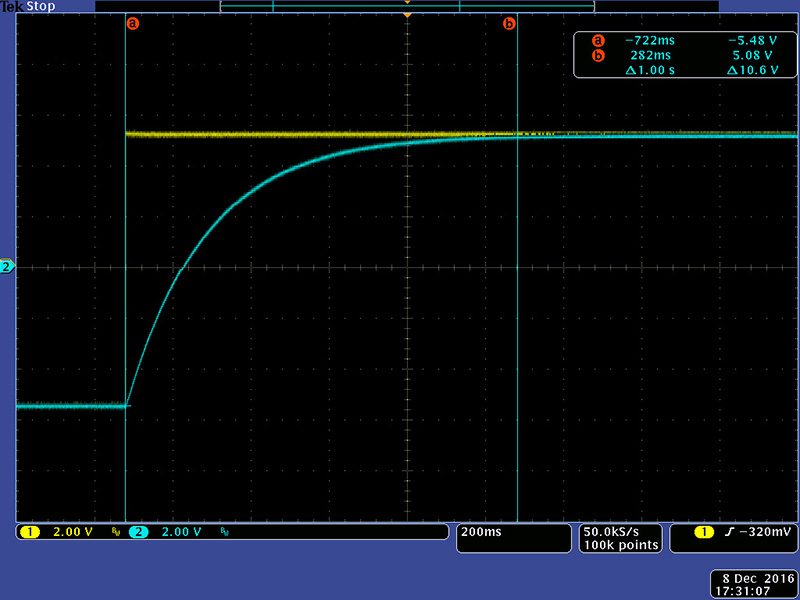

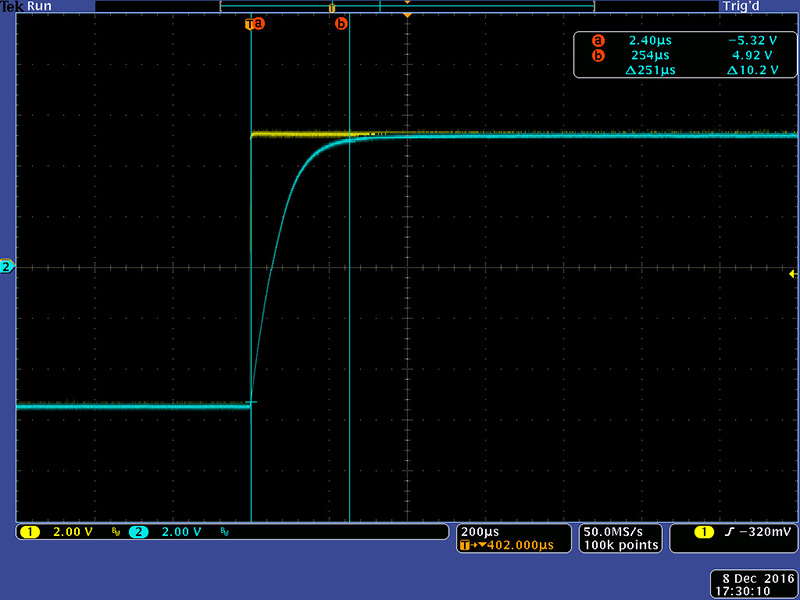

The minimum glide time is 250 ÁS and the longest glide time is 1 second.
