PAiA Custom Keyboard Module

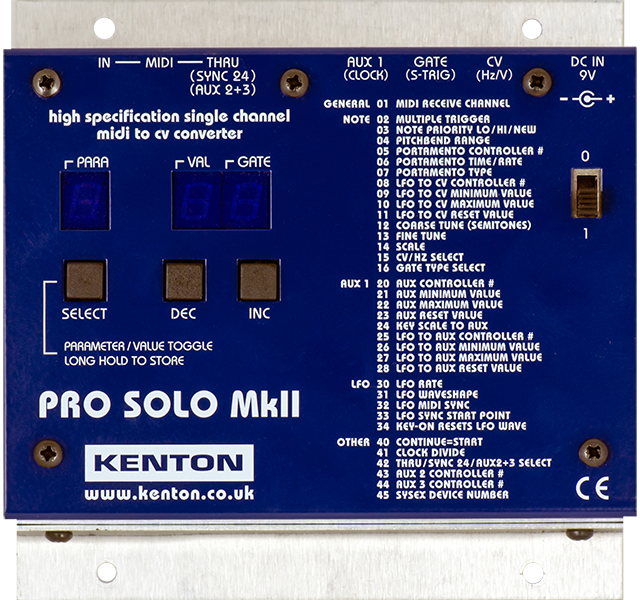

The PAiA 4700 modules are V/Hz.  The customer uses a Kenton Pro Solo II for the MIDI to V/Hz conversion.  The Kenton uses the PAiA custom power supply and is mounted internally in the cabinet and cabled to the panel.

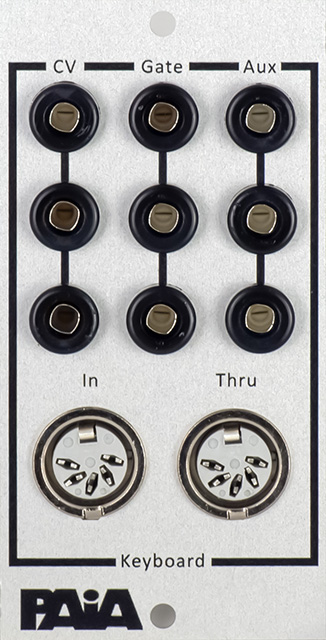

This panel provides front panel access to the inputs and outputs of the Kenton.  I made the panel using 1.5mm anodized aluminum with the print graphics feature from FrontPanelExpress.

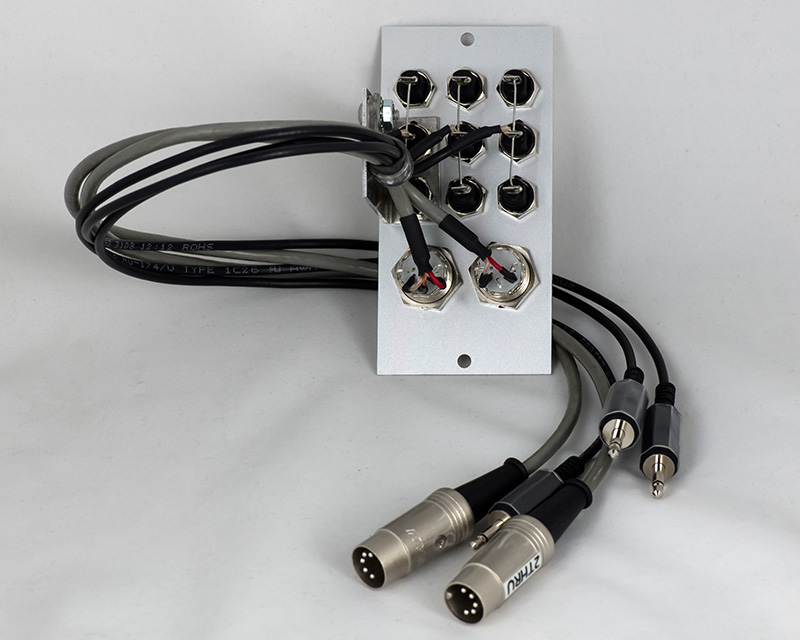

A bracket secures the cables that plug into the Kenton.
