Synton 3015 MXA Mixer Module

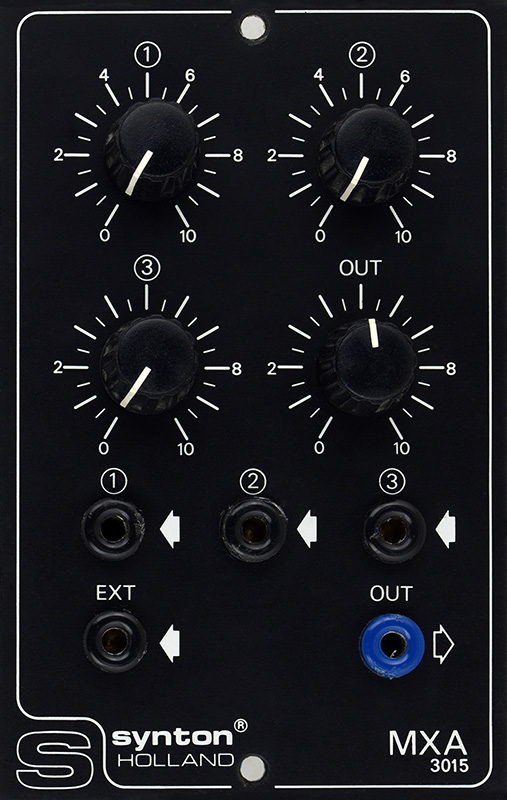

The 3015 is a simple 4 channel mixer. Three of the inputs have attenuators.



This description comes from the Series 3000 Modular Synthesizer Instructions Manual.

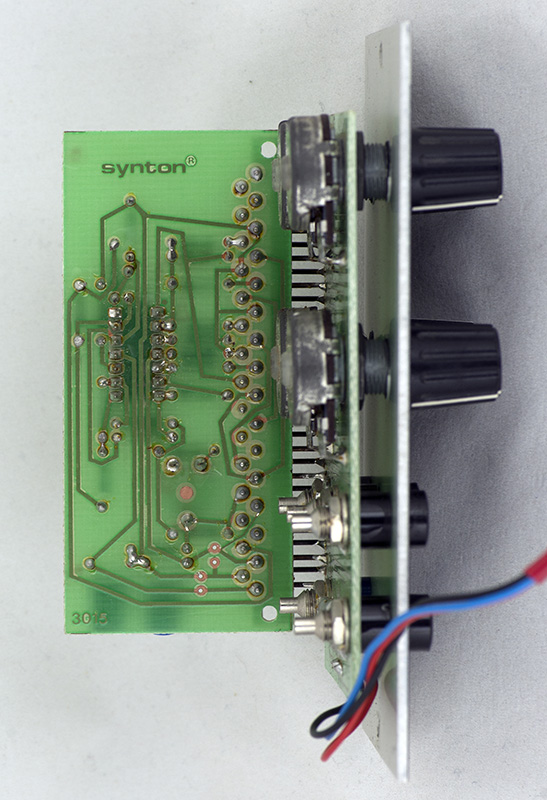

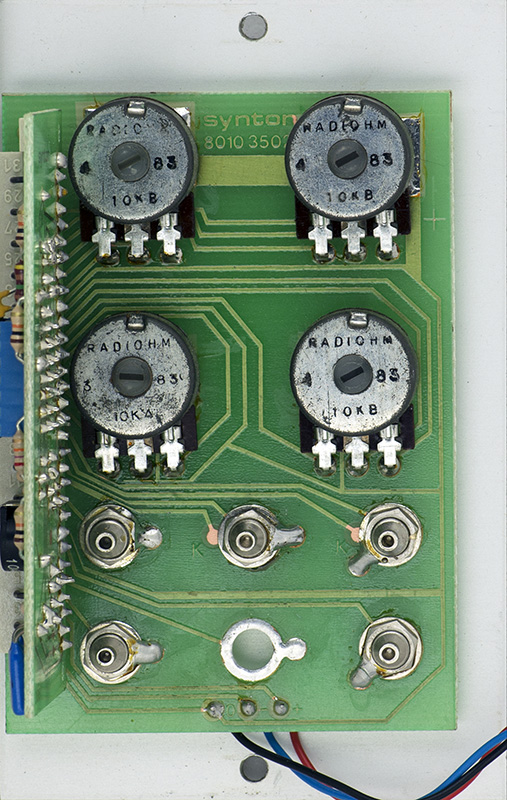

The control PCB is the standard Synton board. The input potentiometers are log and the output potentiometer is linear.

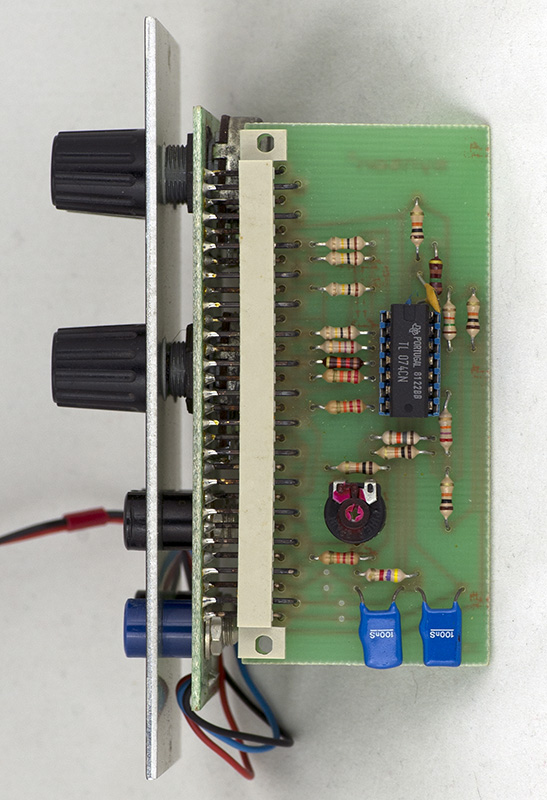

This is a simple module with a single quad op-amp.

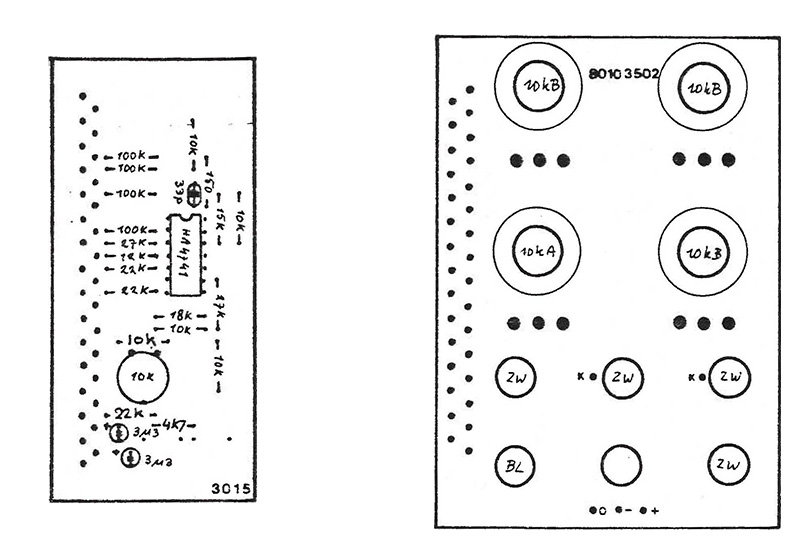

This reference diagram shows the values of the parts.

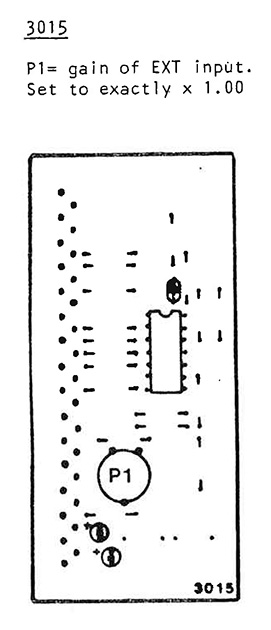

This diagram details the calibration.
