Vedic Scapes Metatron Generator 618

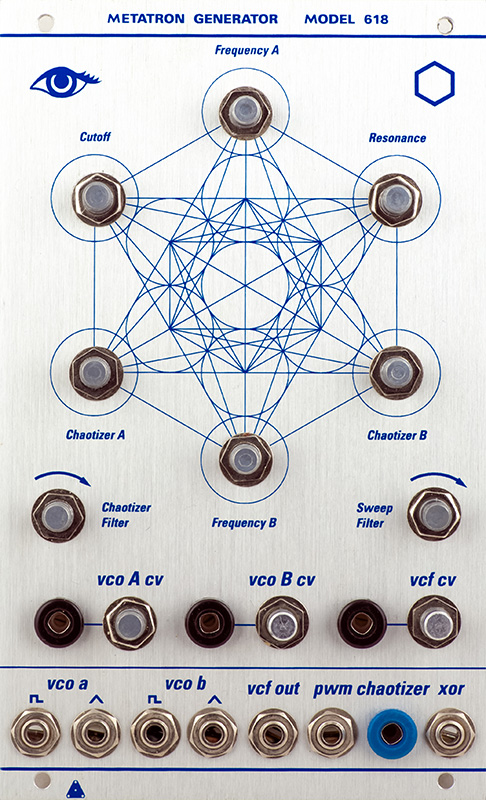

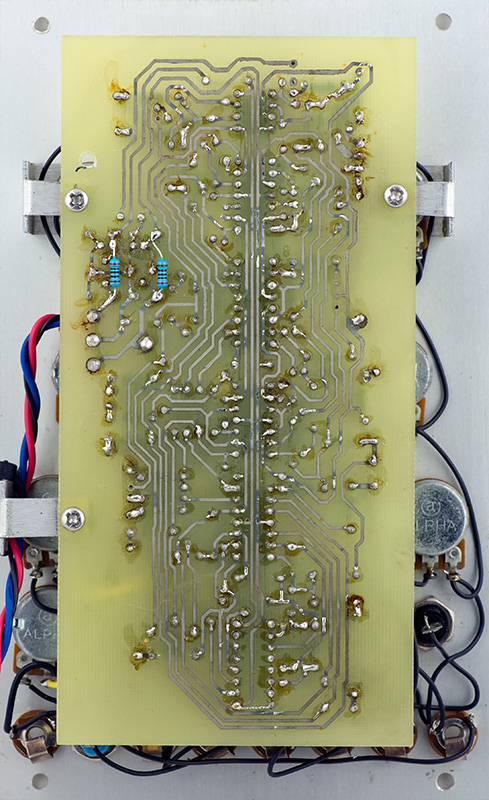

The Metatron 618 is a Rob Hordijk Benjolin module in a Buchla-format 4U panel.





Operation

Although this is in a 4U format, the VCO outputs are not the typical 4V pk-pk. The module internally runs on +/-9V so the digitally generated output such as the square waves go rail-to-rail at about 17V pk-pk. The triangle waves are 7.5V pk-pk.

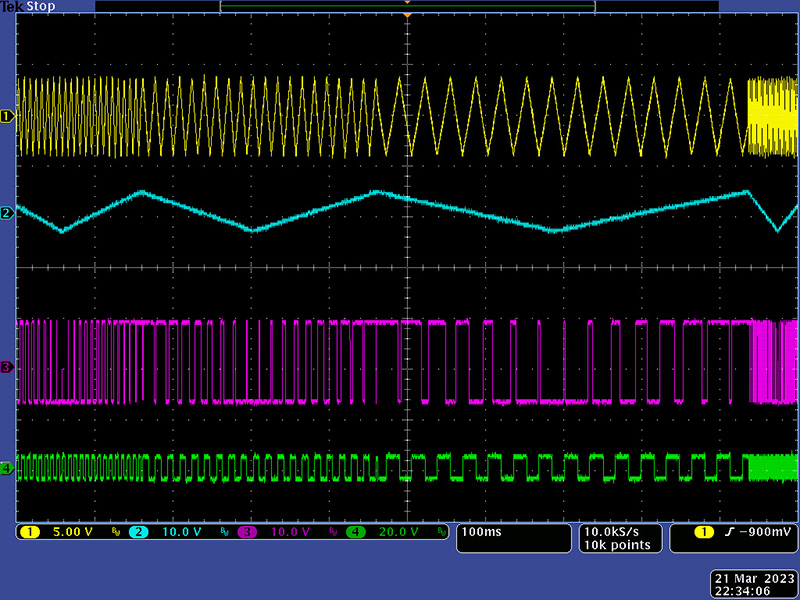

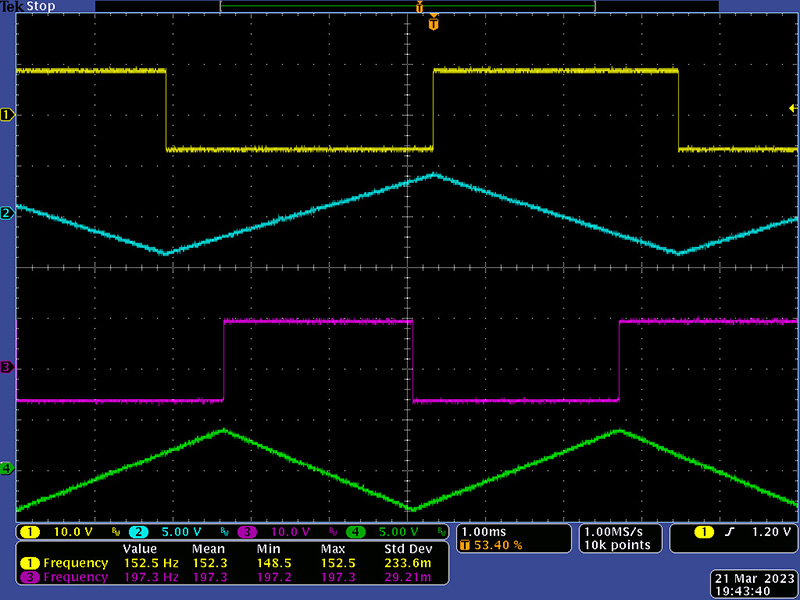

Here are two scope images showing the VCA A and B outputs and the PWM and XOR outputs with a bit of rungler. The PWM and XOR signals also go rail-to-rail and are about 17V pk-pk.
