DJB-004 Module
Mixer / Full Wave Rectifier / & Comparator

This module was inspired by Richard Brewster's Mixer-Comparator module.  I decided I wanted additional functionality and added a Full Wave Rectifier as an alternate output.  A jumper strap on the PCB selects either AC or DC coupling for the full wave rectifier.  For AC coupling the gain is x2 so the output is a full +/- 5 volts.

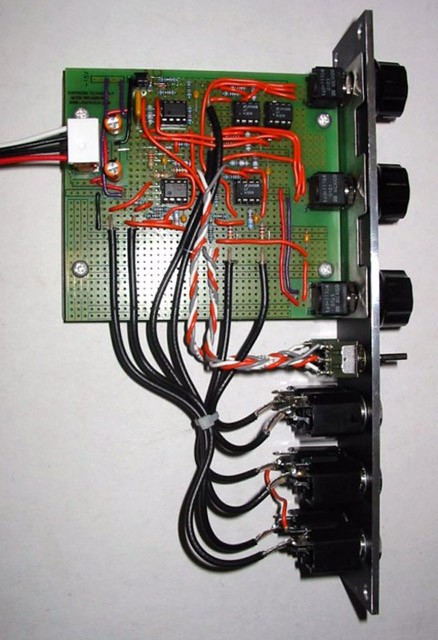

This circuit is wired up on a shortened MOTM-000 prototype pcb.

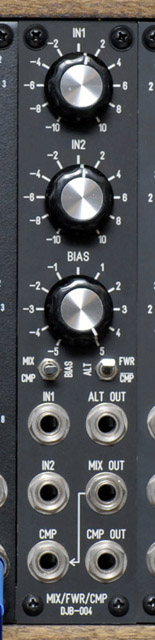

DJB-004 FrontPanelExpress design file

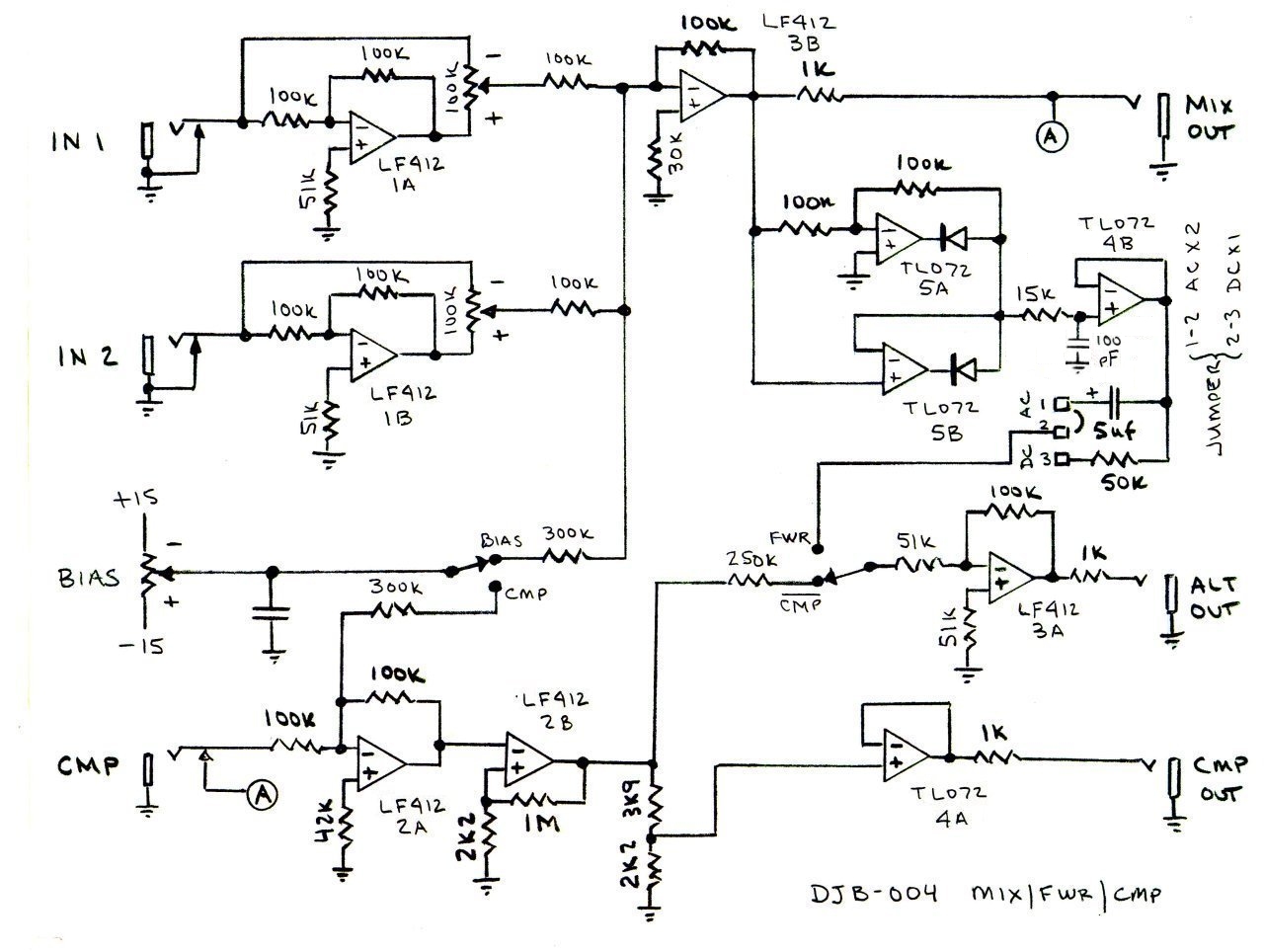

DJB-004 schematic
