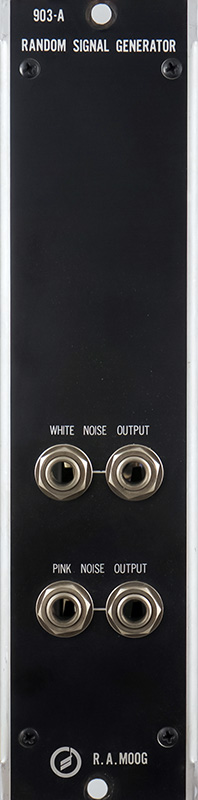

903-A Random Signal Generator Module

The 903-A Random Signal Generator is a pretty simple module.



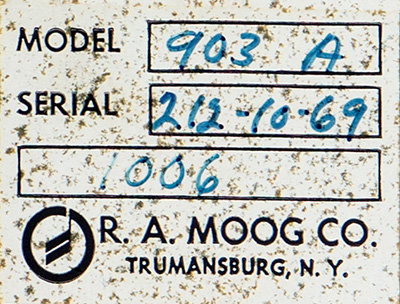

Moog did not give modules serial numbers until 1967 and started at serial 1001 so this is the 6th 903-A produced after assigning serial numbers.

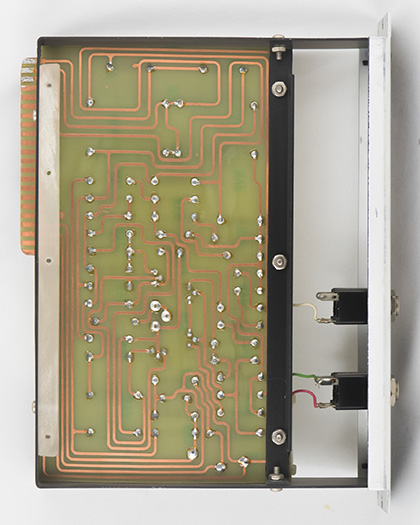

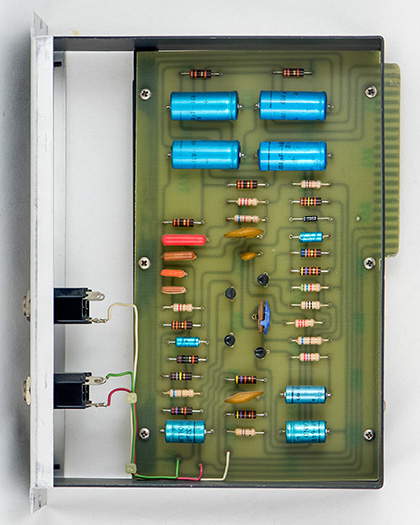

This PCB has the edge fingers.  Many of the Moog modules have a separate PCB with the edge fingers.



White noise on top and pink noise on the bottom.  This is a triggered view so you can see the gap on the left at the trigger point.



An expanded view of the noise without the trigger discontinuity.
