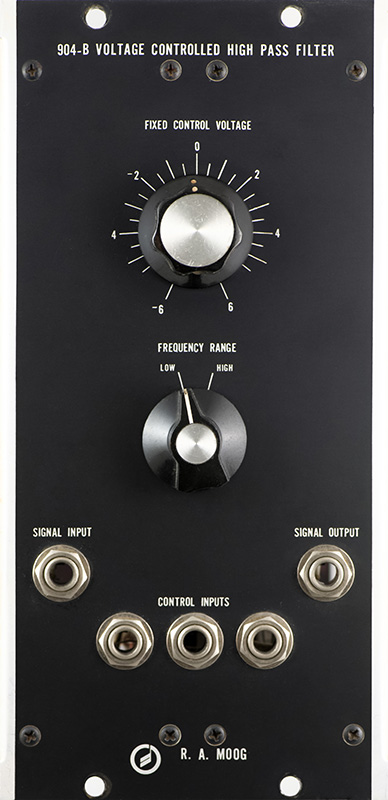

904-B High Pass Filter Module

The 904-B is a voltage controlled high pass filter.  It is pretty simple in operation and controls.

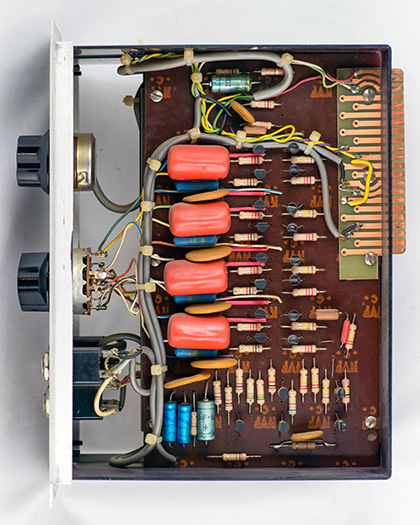

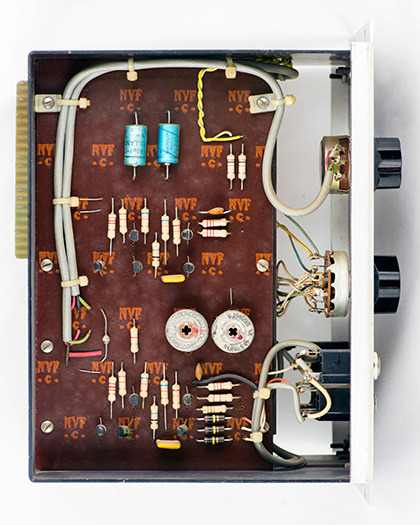

This module has the separate edge finger PCB.  The two PCBs are back-to-back making repairs difficult.





Operation

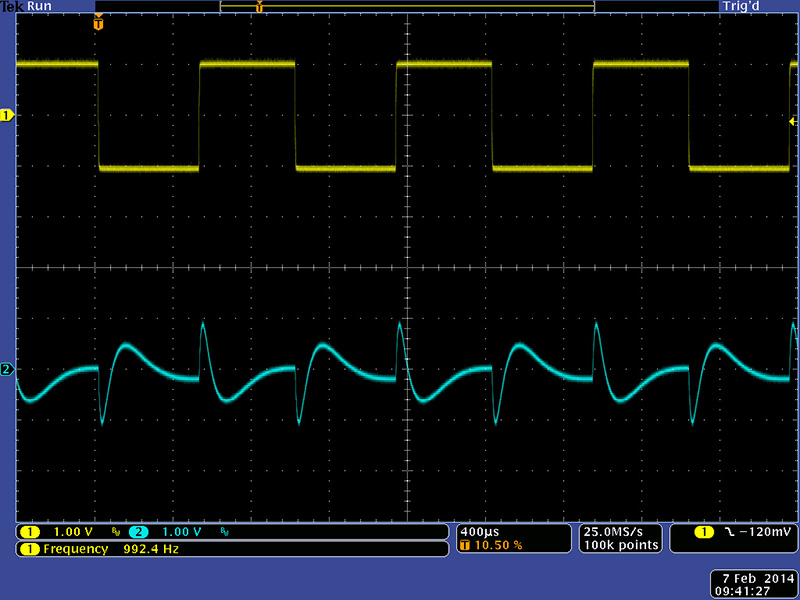

This scope image shows the high pass filtering of a square wave.

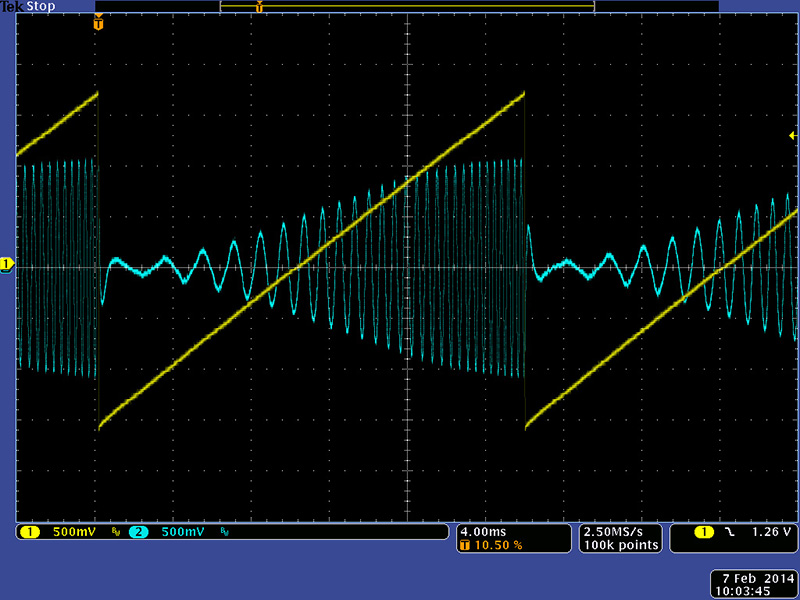

This scope image shows the frequency response of the high pass filter.

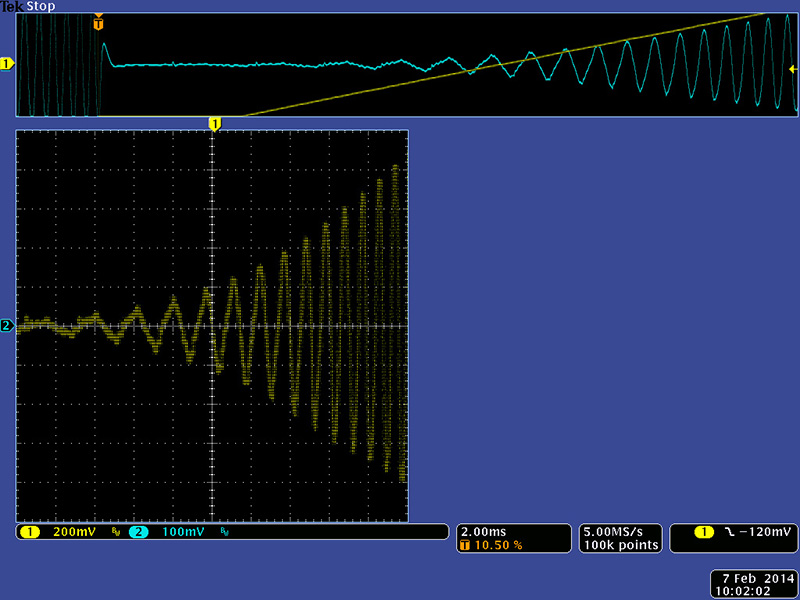

This scope XY plog shows the frequency response of the high pass filter.
