Moog 911-A Dual Trigger Delay

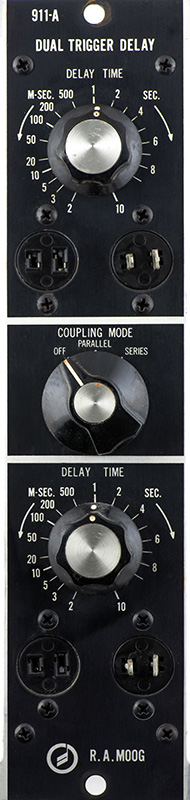

The Moog 911-A Dual Trigger Delay provides two trigger delays from 2 mS to 2 seconds.  The two delay sections can be independent, in parallel, or in series as selected from a front panel switch.

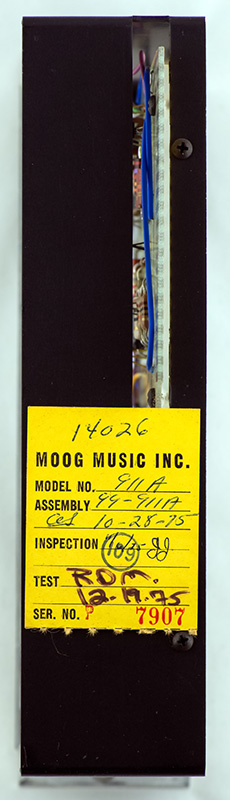

Even though this module is from 1975 it still has the old R. A. Moog label.

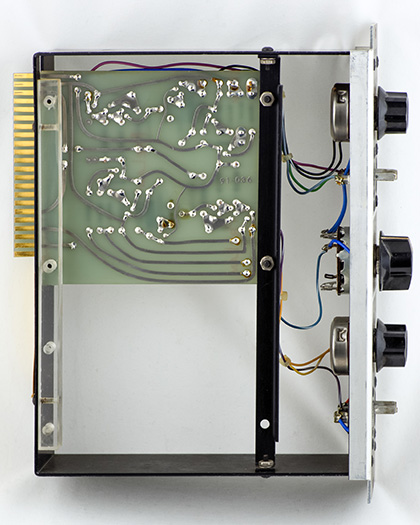

This module now has a circuit board instead of the hand-wired perfboard construction.



Note the parts placement is rotated 180 degrees between the two independent sections.





Operation

I calibrated the delay at the mid-position 1 second setting.  There are scope images of the Dual Trigger Delay operation on the three cabinet Moog 911-A page.
