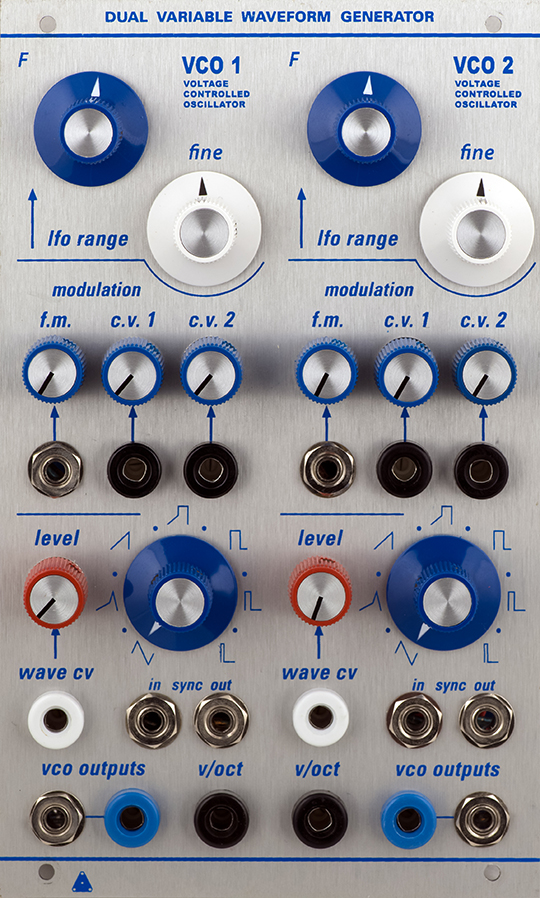

I was sent a Vedic Scapes Dual Variable Waveform Generator module to repair. The variable waveshape is a nice feature. The panel is very symmetrical.

Construction

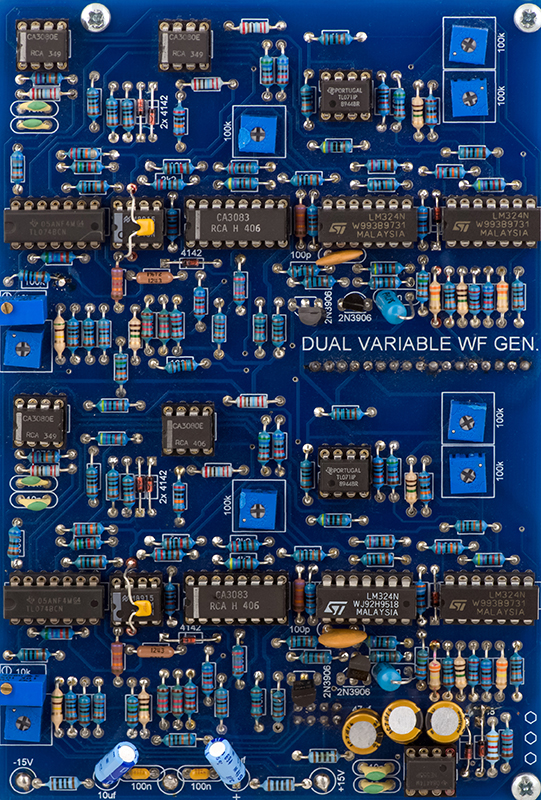

The module is built with 2 PCB construction consisting of a front panel PCB and all the circuitry on the rear PCB.

Operation

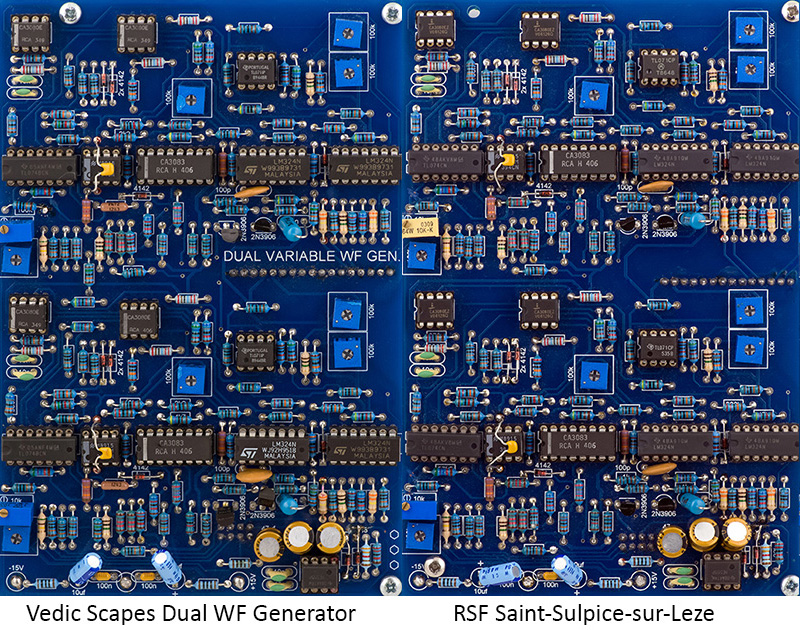

Repairs were minor so I didn't take time to capture waveform scope photos. However, I also had another RSF Kobol Dual VCO to repair. Low and behold the rear PCBs were identical, even down to the added capacitors over the ICs.
